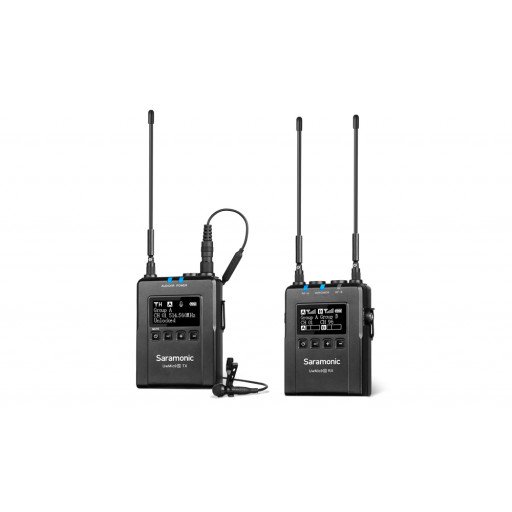

Saramonic UwMic9S Kit1 Wireless Microphone System

Product Description:

UwMic9S Kit1(TX+RX)

Wireless Microphone System

The Saramonic UwMic9s wireless microphone system provides a premium 2-person wireless audio solution for Broadcast &TV,ENG,filmmakers,vloggers,mobile journalists and content creators for a remarkable price,It is an easy-to use,high-quality and flexible UHF system,The external input allows the receiver to be connected to a mic or line level device,such as a shotgun microphone,mixer,recorder or music player to capture additional sound or music.The system can be powered through its USB-C ports,allowing it to run for numerous hours on a USB-C 5V power bank.

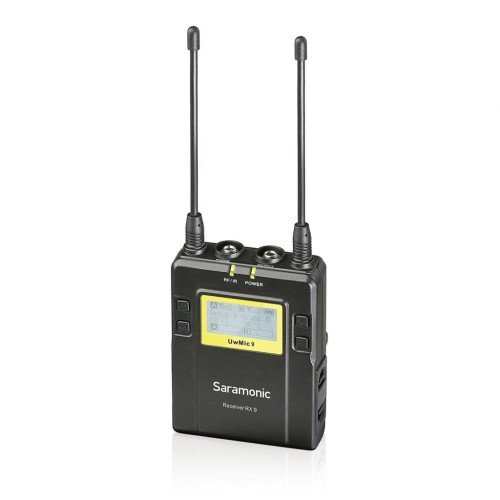

RX9S Portable Receiver

The Saramonic UwMic9s RX is a camera-mountable dual-channel UHF wireless receiver.It features wide switching RF bandwidth,a high-contrast OLED display and infrared,synchronization between transmitter and receiver.The two detachable antennas can be rotated 360° for better reception.The receiver’s output can be toggled between mono and stereo modes,The low-cut function on the receiver minimizes low-frequency rumble.

Body-pack Transmitter TX9S

The Saramonic UwMic9S-TX9S is a mountable body-pack transmitter.It features an easy-to-read OLED display,a detachable antenna and built-in rechargeable batttery.with the line input and mic input jack,it can accept audio from the included 3.5mm locking lavalier mic or other line-level devices,A short press of the power button mutes the mic between takes.The locking function prevents the transmitter from being muted or turned off accidentally.

Features.

Delivering professional broadcast-quality sound

Low-cut function for low-frequency noise canceling

Infrared pairing function

Mono/Stereo mode switchable

Vivid High-contrast OLED display

Detachable and 360°switchable antenna

ON/OFF physical switches for group channel A and B

Independent left and right channel outputs

Built-in rechargeable Li-ion battery

Mic and Line input for multi-layered content creating

Headphone monitoring available

Watertight suitcase included

Speciflcation.

Receiver RX9S

Channel number: 96

Frequency Response: A and B

Oscillator type: PLL synathesizer

Audio output connector: 3.5mm mini jacks(A and B channel output),

 3.5mm headphone output

Audio input connector： 3.5mm mini jack(MIC IN/Line In jack)

Antenna: 1/4λ wire antenna

Audio output level: -60 dBV

Headphone output level: 30mW(16Ω)

Receive frequencies: 514MHz-596MHz

Receive sensitivity: -95dBm

Signal-to-noise ratio: 75dB or more

Reference deviation: ±5kHz(-60 dBV,1kHz input)

Frequency response: 40Hz to 18kHz(+/-3dB)

Distortion 0.2% or less

Spur suppression -60dB

Reference audio input level -60dBV(Mic input,0dB attenuation)

Built-in battery capacity 2000mA

Power Requirements Built-in Li-ion Battery or USB-C DC 5V

Continuous use time 8 hrs

Dimension 220×64×25mm

Weight 193g(6.8oz)

Operating temperature 0℃ to 50℃

Storage temperature -20℃ to +55℃

Transmitter TX9s

Channel number: 96

Frequency Response: A and B

Oscillator type: PLL synathesizer

Carrier frequencies： 514MHz-596MHz

Reference deviation： ±5kHz(-60 dBV,1kHz input)

Signal to noise ratio： 75dB or more

Spur suppression -60dB

Voice delay 12ms

Antenna 1/4λ wire antenna

Audio input connector 3.5mm mini jacks(MIC IN and LINE IN jack)

Reference audio input level -60dBV(MIC input,0dB attenuation)

Distortion 0.2% or less

Built-in battery capacity 2000mA

Power Requirements Built-In Li-ion Battery or USB-C DC 5V

Continuous time 8hrs

Dimensions 220*64*25mm

Weight 157g(5.5 .oz)

Operating temperature 0℃ to 50℃

Storage temperature -20℃ to +55℃

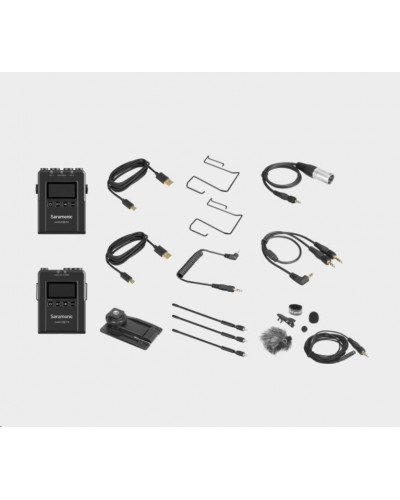

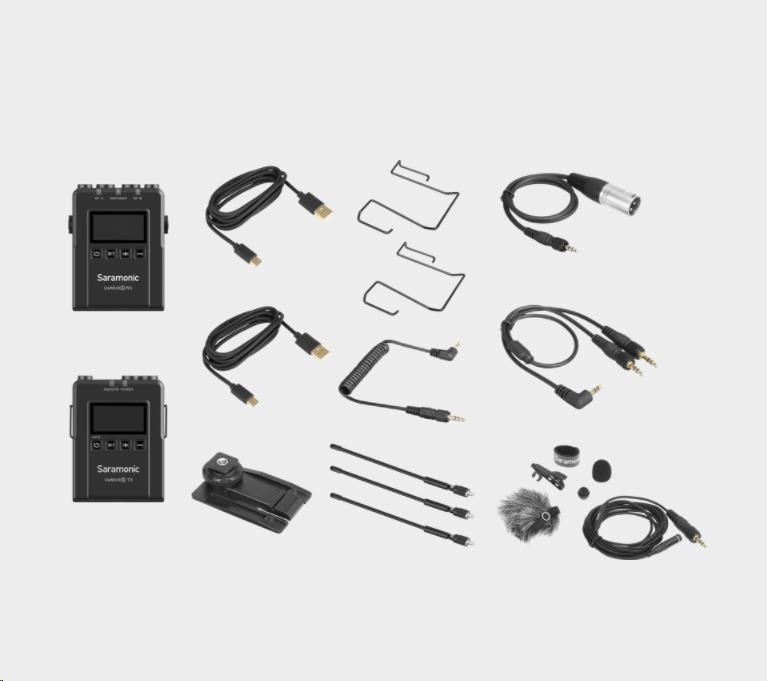

packing.

1×Body-pack transmitter:TX9S

1×Portable receiver:RX9S

1×DK3A Omnidirectional Lavalier Microphone

1×1′(30cm)SR-C2004 3.5mm TRS Male to Dual Locking-type 3.5mm TRS Male Y-Cable

1×1.3′(40cm) XLR to 3.5mm TRS Locking-type plug Audio Cable

2×3.8′(1.2m)USB-C Charging Cables

1×2.6′(80cm)3.5mm TRS Locking-type Plug audio Cable for Cameras

3×Antennas

2×Belt Clips

1×Cold Shoe Mount Adapter

Please Note: Camera and Lens in the pictures are NOT included !
