FEELWORLD T7 7 Inch Field Video Monitor 4K HDMI Full HD External for DSLR Camera

Product Description:

FeelWorld T7 Overview

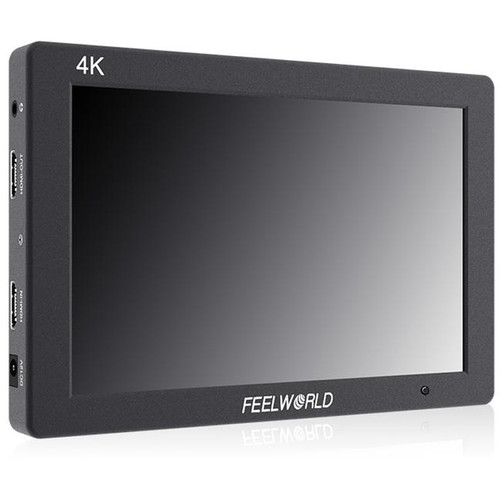

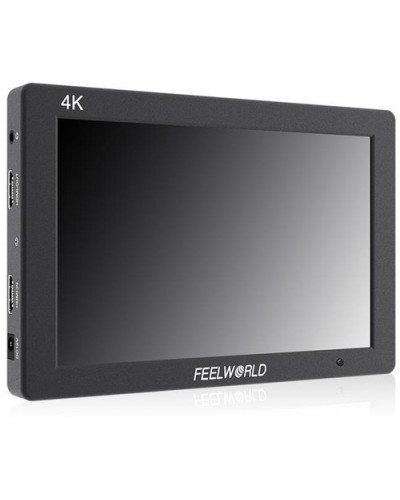

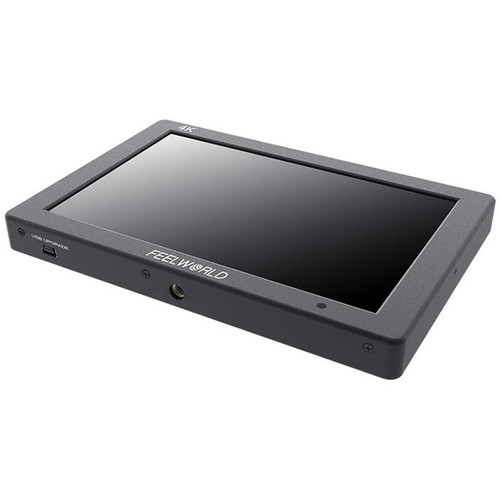

The 7" IPS 4K HDMI On-Camera Aluminum Monitor from FeelWorld features a native display resolution of 1920 x 1200. It can display signals without scaling, while it scales higher and lower resolution content to fit the screen. The IPS screen allows for off-axis viewing of 80° up/down/left/right, and features a brightness of 450 cd/m2 with a contrast ratio of 1200:1. The monitor incorporates an HDMI input and output. The T7 features useful functions into its small size including peaking, zoom, pixel mapping, anamorphic de-squeeze, frame lines, markers, and image flip. The monitor includes a Mini HDMI to HDMI cable, sunshade, shoe mount adapter, and L-series type battery plate.

Key Features

Full HD 1920 x 1200 resolution

Aircraft grade aluminum construction

IPS panel with 160° wide-viewing angle

Histogram

Peaking focus assist (red, green, blue)

False colors

Zebra exposure

Nine grid

Embedded audio meter

Camera mode

Zoom (4x, 9x, 16x)

Anamorphic mode (1.3x, 2.0x, 2.0x mag)

Pixel-to-pixel

Center marker

Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)

Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)

Marker color (red, green, blue, white, black)

Check field (red, green, blue, mono)

Image flip (H, V, H/V)

Image freeze

Zoom-all

U/D and L/R zoom

Color temperature adjustment

FeelWorld T7 Specs

Screen Size 7" / 17.7 cm

Resolution 1920 x 1200

Pixel Pitch 0.07875 x 0.07875 mm

Aspect Ratio 16:10

Brightness 450 cd/m2

Contrast Ratio 1200:1

Backlight LED

Viewing Angle 80°/80° (L/R)

80°/80° (U/D)

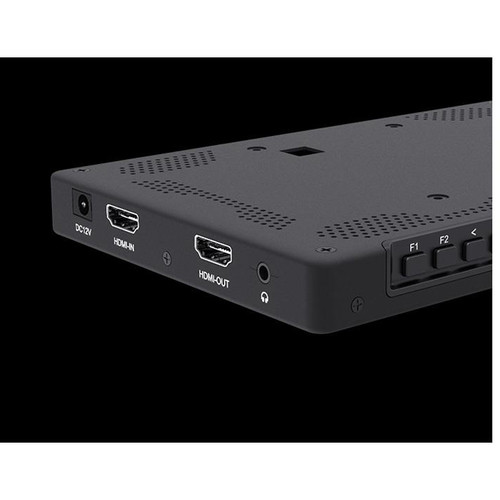

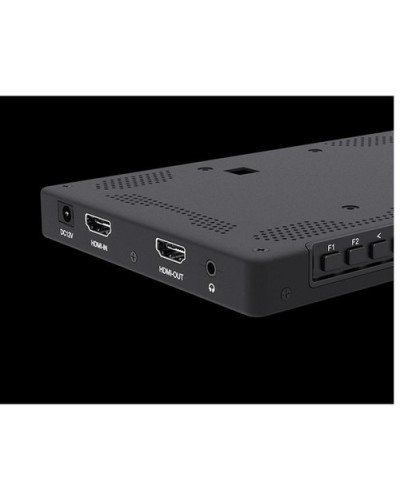

Input 1 x HDMI

Output 1 x HDMI

Audio Out 3.5 mm stereo headphone jack

Speaker

HDMI Format Support 4096 x 2160p: 24

3840 x 2160p: 30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080PsF: 24/23.98

1080i: 60/59.94/50

720p: 60/59.94/50/30/29/25/24/23.98

576p/576i

480p/480i

Input Voltage 7 to 24 VDC

Power Consumption ≤8 W

Operating Temperature -4 to 131°F / -20 to 55°C

Storage Temperature -22 to 149°F / -30 to 65°C

Mounting Thread 1/4"-20 thread socket (top, bottom)

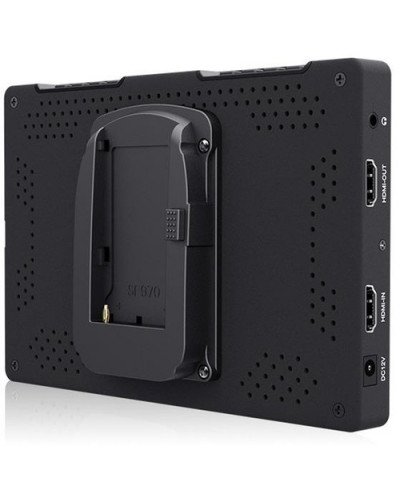

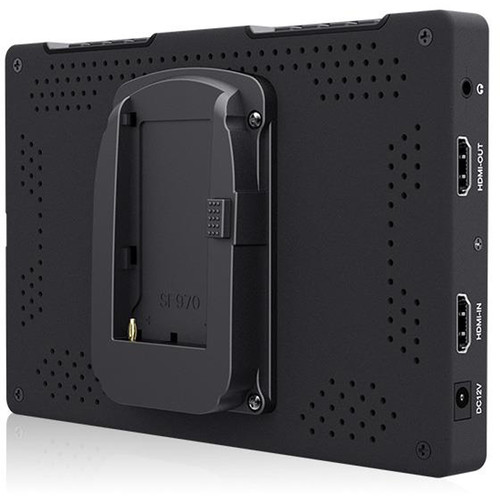

Battery Plate L-series type

Dimensions 7.1 x 4.7 x 0.7" / 180 x 120 x 18 mm

Weight 11.3 oz / 320 g (without battery plate)

12.3 oz / 350 g (with battery plate)

Package:

FeelWorld 7" IPS 4K HDMI On-Camera Aluminum Monitor

Sunshade

Mini HDMI Cable

Shoe Mount Adapter

L-Series Battery Plate
