Product Description:

Eliminate your camera’s internal compression and time limits – record up to 4Kp60 10-bit HDR video direct from your camera's sensor over HDMI 2.0. Teamed with a 1TB AtomX SSDmini you can now achieve up to 150 minutes of 4K recording on a single drive! And when you’re done, your edit-ready ProRes and DNxHR recordings are stored on affordable SSD drives.

HDR/SDR

The Ninja V displays 10+ stops of dynamic range in realtime from Log/ PQ/HLG signals. See your images clearly in daylight on the near edge-to-edge anti-reflection screen. Ninja V can be calibrated for perfect color accuracy every time, and also enables playout to HDR or SDR TV.

Compact Monitor Recorder

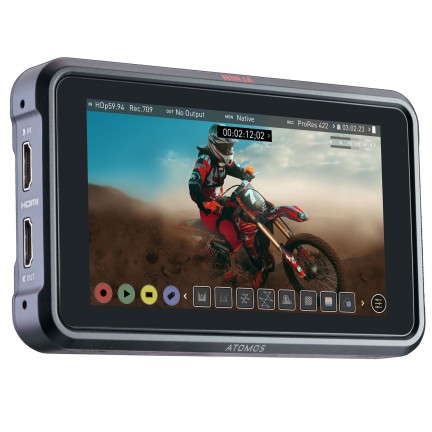

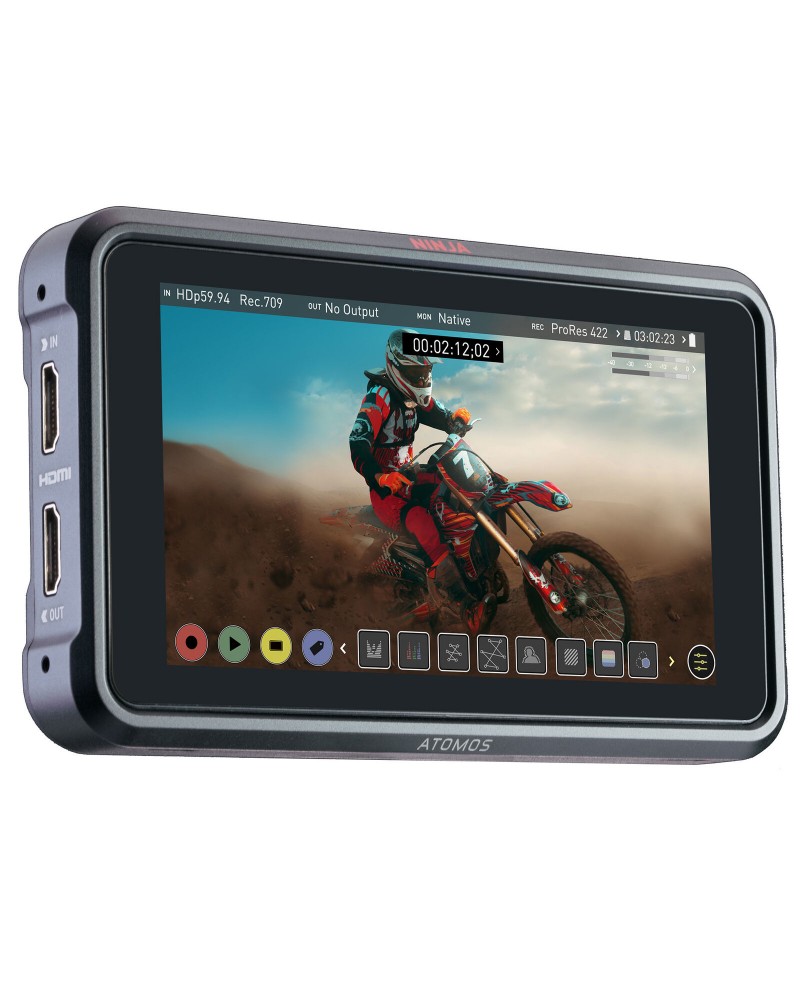

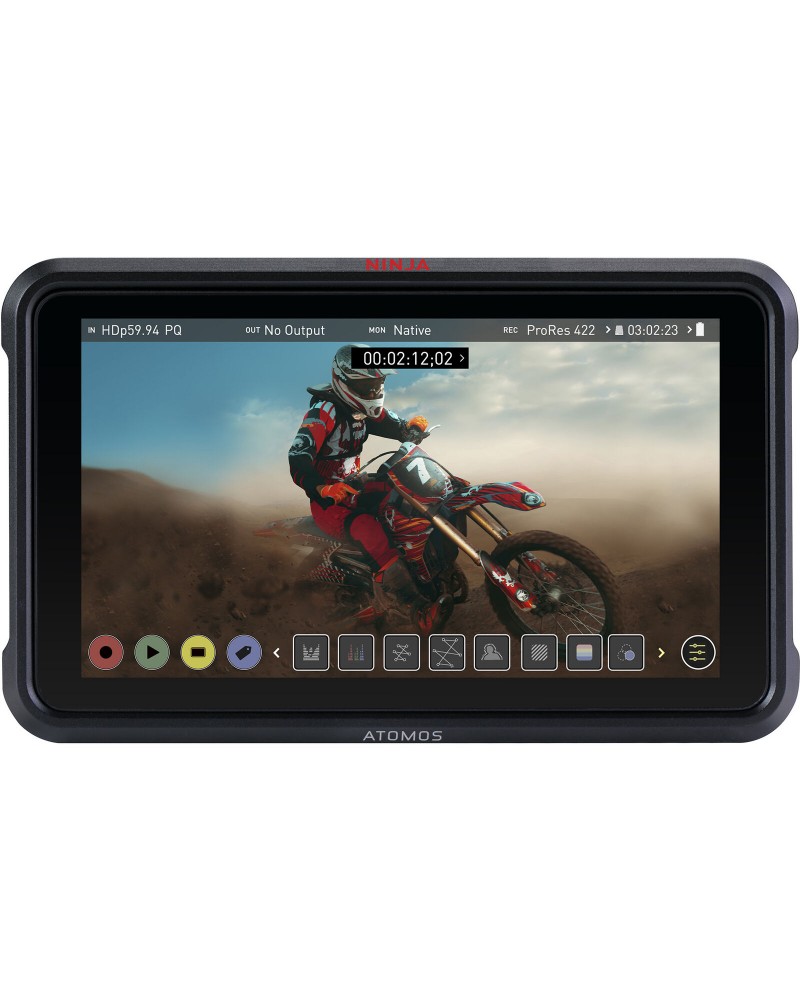

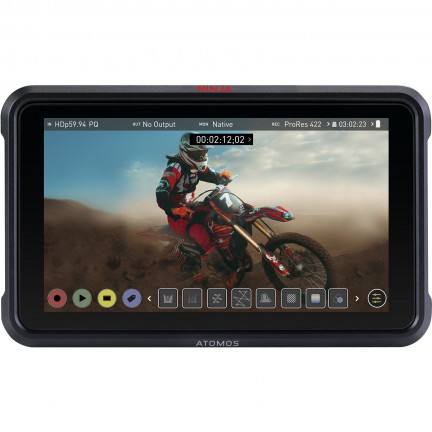

The Ninja V features a stunningly bright 5.2-inch 10-bit HDR monitor with an astounding 1000 nits of output. The sleek aluminium body is crafted for maximum durability, weighing in at just 320g and measuring only 25mm thick – easily attaching to any camera.

Pocket Size Playback

AtomOS allows accurate set up and one-touch operation, ensuring a great recording every time. Of course, a recording isn't complete until checked; Ninja V allows instant playback, slow motion and frame-by-frame analysis for immediate review.

Record 4K HDR Gaming

Ninja V is a stand-alone system for 4k UHD, HDR and high frame rate capture that eliminates expensive, complicated and unreliable PC setups. Ninja V enables simple recording, monitoring and instant review. Capture every detail in HDR and automatically include all the correct HDR flags ready for upload to YouTube. Ideal for games development testing, pre-release capture sessions or just to show off your skills!

SSD Made Mini

Atomos has worked closely with their drive partners at Angelbird and Sony to bring you the AtomX SSDmini. These tiny drives are only 7mm high and 80mm long. They retain the same SATA III connector as traditional SSDs and they are backward compatible with our range of Ninja, Shogun and Sumo devices.

Great Sound

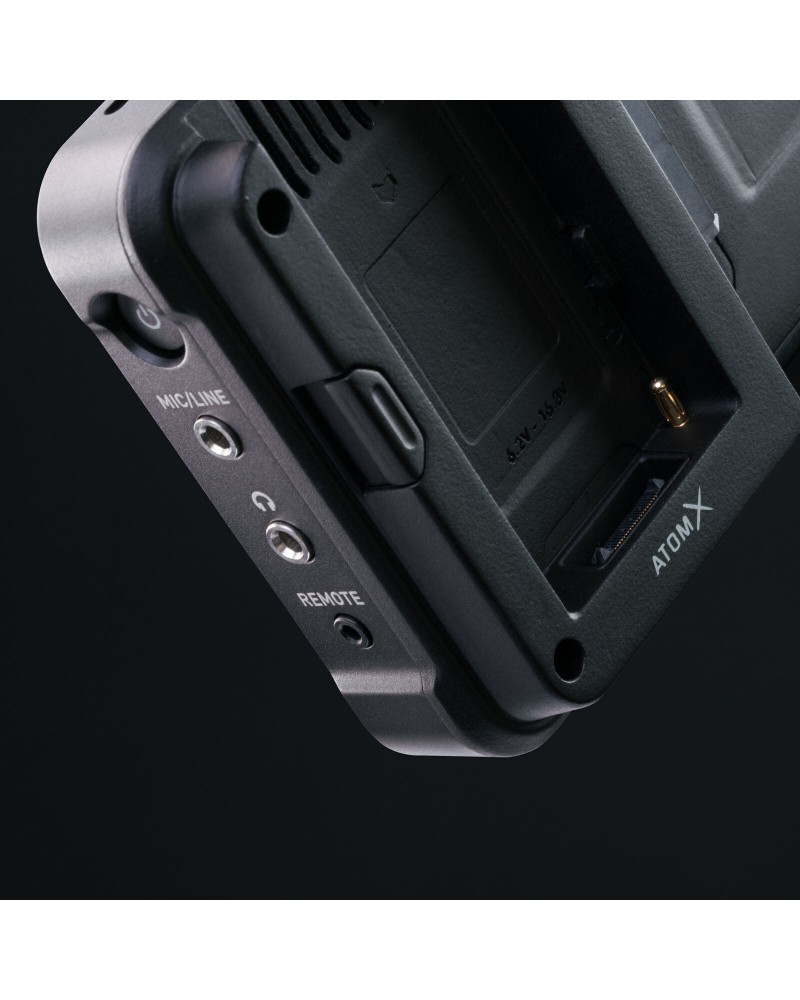

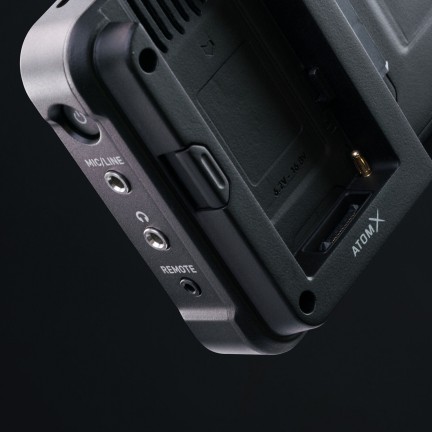

Like all Atomos Monitor/Recorders, Ninja V enables audio input directly from your camera. Choose from digital source via HDMI, or analogue input via the stereo 3.5mm line/mic socket, depending on your equipment.

Edit, Finish and Upload

Ninja V files are available immediately on your Mac or PC. Tag on-the-fly while recording for direct-to-edit look up in Final Cut Pro X, Adobe Premiere and Avid Media Composer. Both video and gaming workflows are supported for the fastest path to your audience.

Modular Expansion Slot

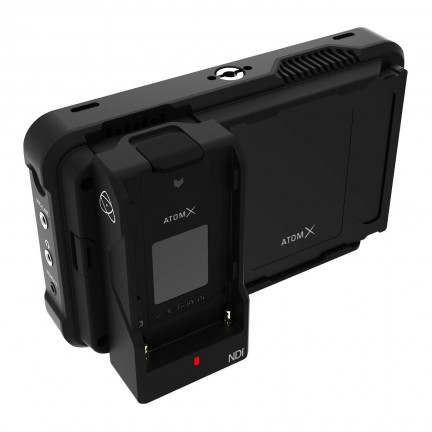

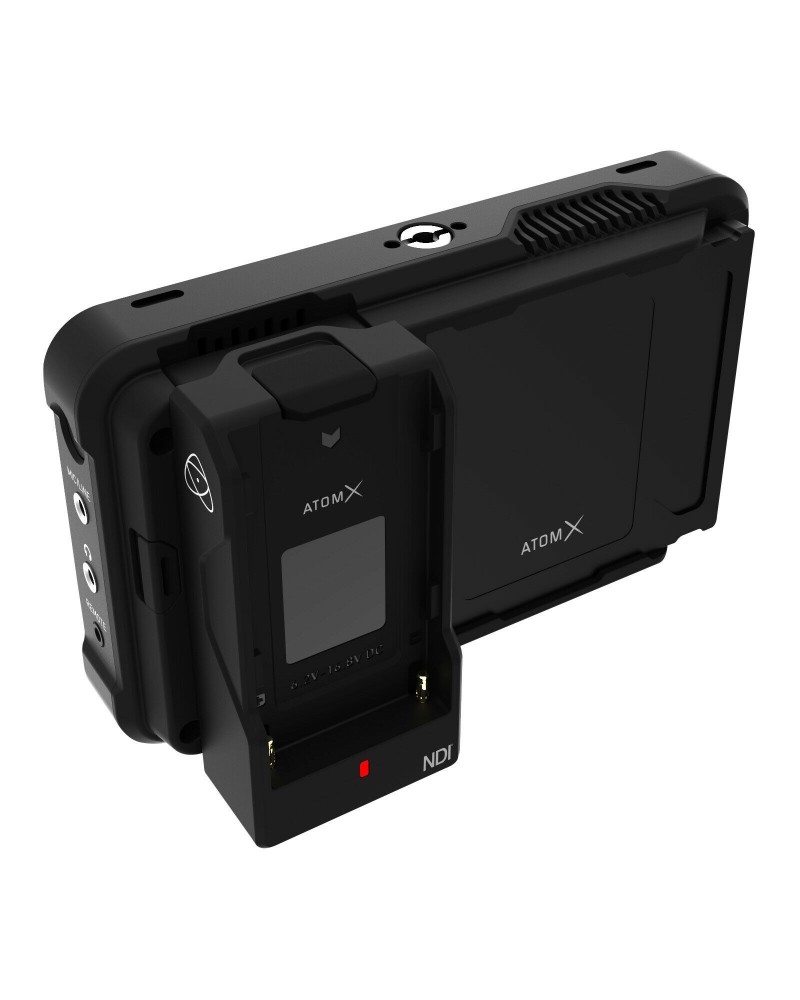

Modularity is at the heart of the Ninja V with a bi-directional high speed expansion port breaking out connectivity for I/O of video, audio and power. Atomos created AtomX to ensure users could adapt and connect to any legacy or future wireless or wired video standard.

Features

5-inch 4Kp60 monitor recorder with 10-bit HDR

Displays 10+ stops of dynamic range in realtime

Small and compact design

Allows instant playback and frame-by-frame analysis

Record 4K HDR gaming

Features AtomX SSDmini

Enables audio input directly from your camera

Edit, finish and upload fast and easy

Built-in modular expansion slot

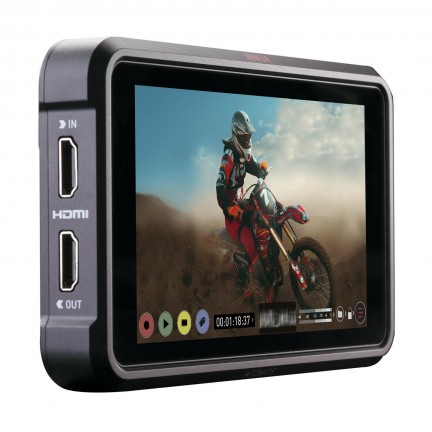

Atomos Ninja V 5-Inch HDR Daylight Viewable Portable Monitor/Recorder

General

Dimensions (W x H x D mm): 151 x 91.5 x 31mm

Construction: Aluminium alloy chassis with ABS polycarbonate back plate

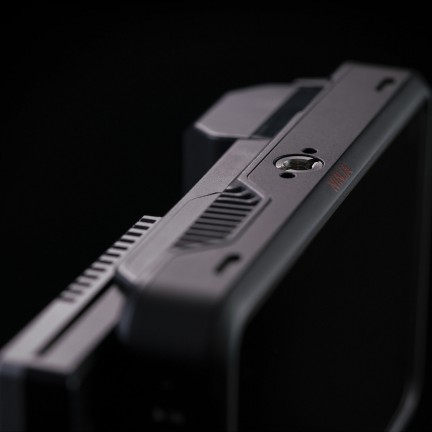

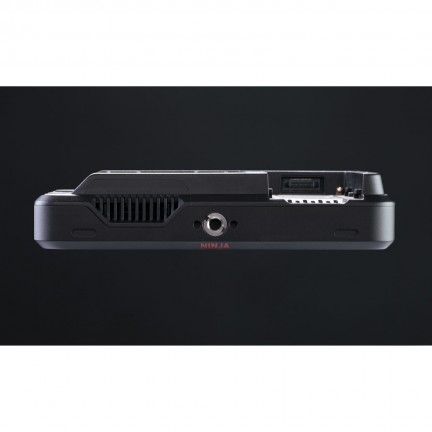

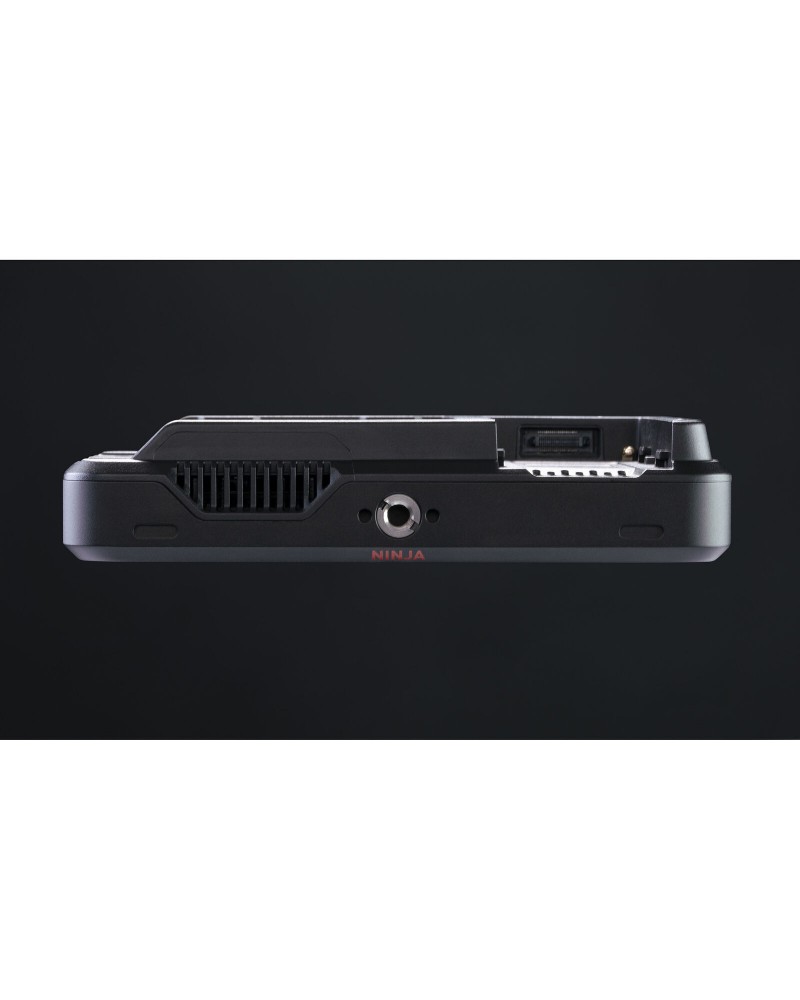

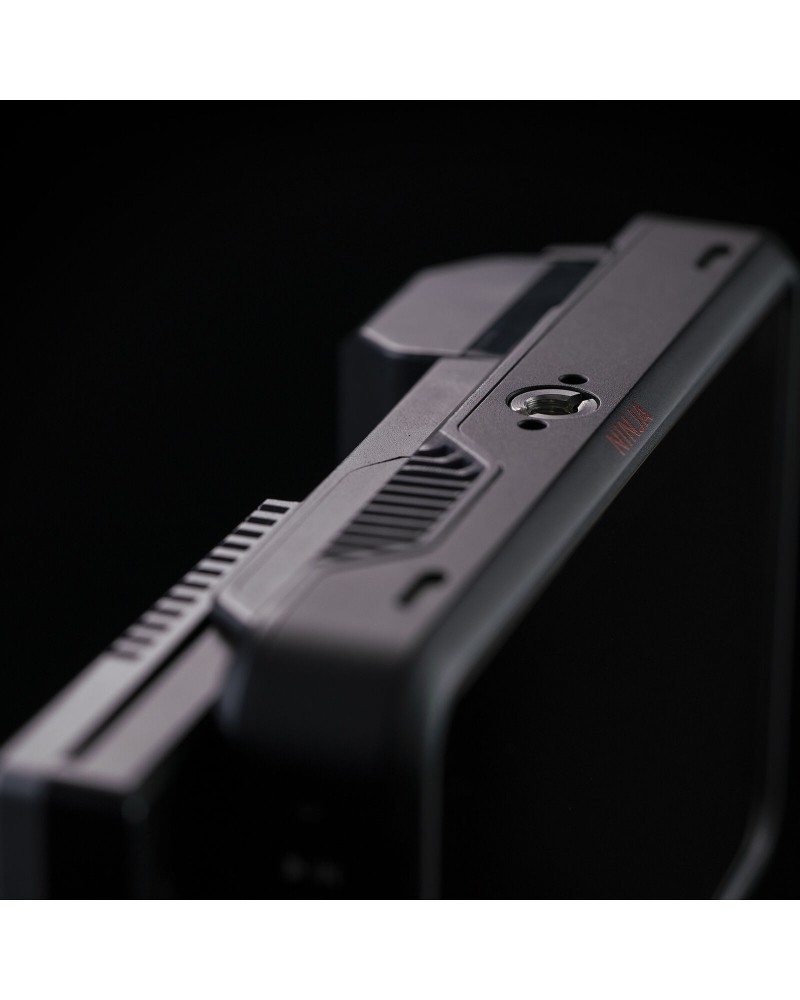

Mounting points: 1/4-20 UNCscrew mount; 1x top, 1x bottom

Power

Operating power: 10 - 19W

Compatible batteries: NP-F series and supporting accessories

Input voltage (battery): 6.2V to 16.8V

Battery time (based on 2 x 7.4V):

5200mAh - up to 2hrs (monitor & record 4K +60p)

7800mAh: up to 3hrs (monitor & record 4K 60p)

DC In

Continuous power: Continuous power with external adapter

Touchscreen

Size: 5-inch

Resolution: 1920 x 1080

PPI: 427

Aspect ratio: 16:9 native

Color Gamut: REC709 HDTV

Look up table (LUT) support: 3D LUT (.cube format)

Anamorphic de-squeeze: 2x, 1.5x, 1.33x, Panasonic 8:3

Technology: SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

HDR

AtomHDR: Yes

Supported Log formats: Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog

HDR Recording (Gamut): Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ10k, HLG

HDR Monitoring (Gamma):

Sony SGamut / SGamut3 / SGamut3.cine / BT2020

Canon Cinema / DCI P3 / DCI P3+ / BT2020

Panasonic V Gamut

Arri Alexa Wide Gamut

Rec709

JVC LS300

Red DragonColor / DragonColor2 / RedColor2 /

RedColor3 / RedColor4 / RedWideGamut

HDR Monitoring (Gamut): Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / CI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide Color Gamut (SGamut / Gamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out

Bit depth: 10-bit (8+2 FRC)

Brightness: 1000nit (+/- 10% @ center)

HDR input (PQ/HLG): Yes

HDR output (PQ/HLG): Yes

Video Input/Loop Out

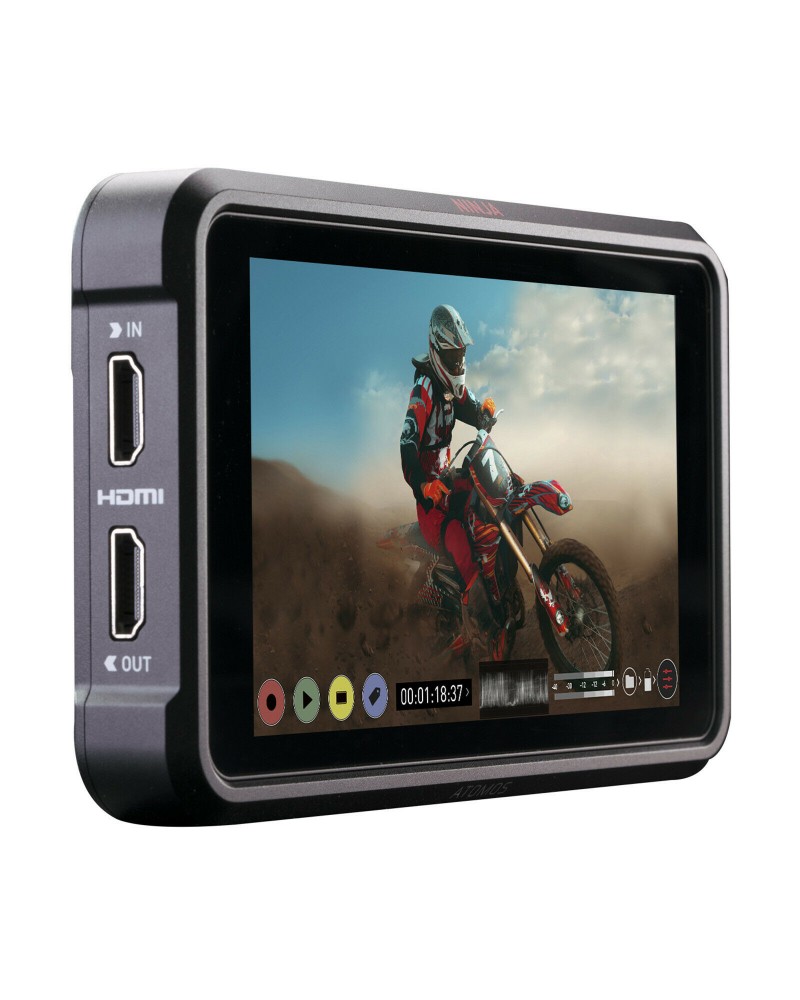

HDMI: 1 x HDMI (2.0)

Signal: Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Video Output (Play Out)

HDMI: 1 x HDMI (2.0)

Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

Supported Loop Out Formats

HDMI to HDMI:

720p 50/60, 1080i 50/60,

1080p 24/25/30/50/60/100/120

2160p 24/25/30/50/60

AtomXpansion Video Audio Power Extender In/Out

Video: Up to 4Kp60

Audio: 12 channels digital 24-bit 96KHz

Power: 5V-16.6V

Supported Codecs & Frame Rates (Record & Playback)

Video to ProRes / DNxHR: (DNx utilizes a .MOV wrapper)

Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB:

4K DCI; 24/25/30/50/60p

4K UHD; 24/25/30/50/60p

2K

1080p; 24/25/30/50/60/100^/120^

1080i; 50/60i, 720p; 50/60p

Onboard Processing

Pulldown removal: 24/25/30pSF > 24/25/30p (2:2 pulldown), 60i > 24p (3:2 pulldown)

4K UHD downscale for HD monitoring: Yes - Loop-out and playback

Audio In/Out (48kHz PCM Audio)

HDMI: 2 or 8ch 24-bit, camera dependent

Audio: Line in / Mic in / Headphone out 2ch 48kHz 24-bit

Headphone out: 3.5mm

Built-in speakers: Yes

Remote Start/Stop

HDMI: Auto HDMI Trigger

Supported Protocols - Canon, Sony, Atomos Open Standard

Other: LANC control - Slave

Playback

Playlist / Genlock / LTC: Yes / - / -

CDNG (Recorded content): N/A

ProRes (Recorded content): ll recorded files can playback. Playback in slow motion.

DNxHR / DNxHD (recorded content): All recorded files can playback. Playback in slow motion.

Recording

Pre-roll record: Yes (HD 8s, 4K 2s)

Custom timelapse: Yes

Meta data tagging: Yes (10 tags available)

Supported media: 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate.

Master caddy case: Master Caddy II (included), 75mm x 105mm x 12mm

Master caddy dock: 2.5” SATA to USB 2.0/3.0

Supported applications:

Supported Applications FCPX/FCP7+ / Media Composer

5.0+ / Premiere 5.5+

EDIUS 6.0+ / Vegas Pro 10+ / Lightworks /

Autodesk Smoke 2015

XML support: FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools

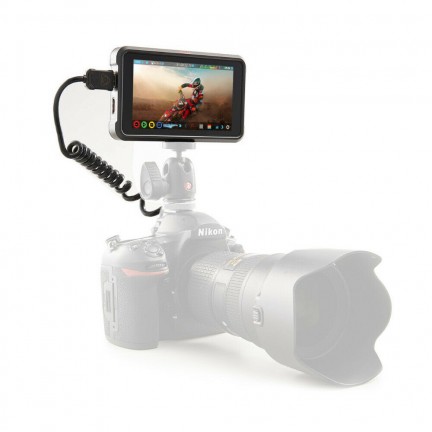

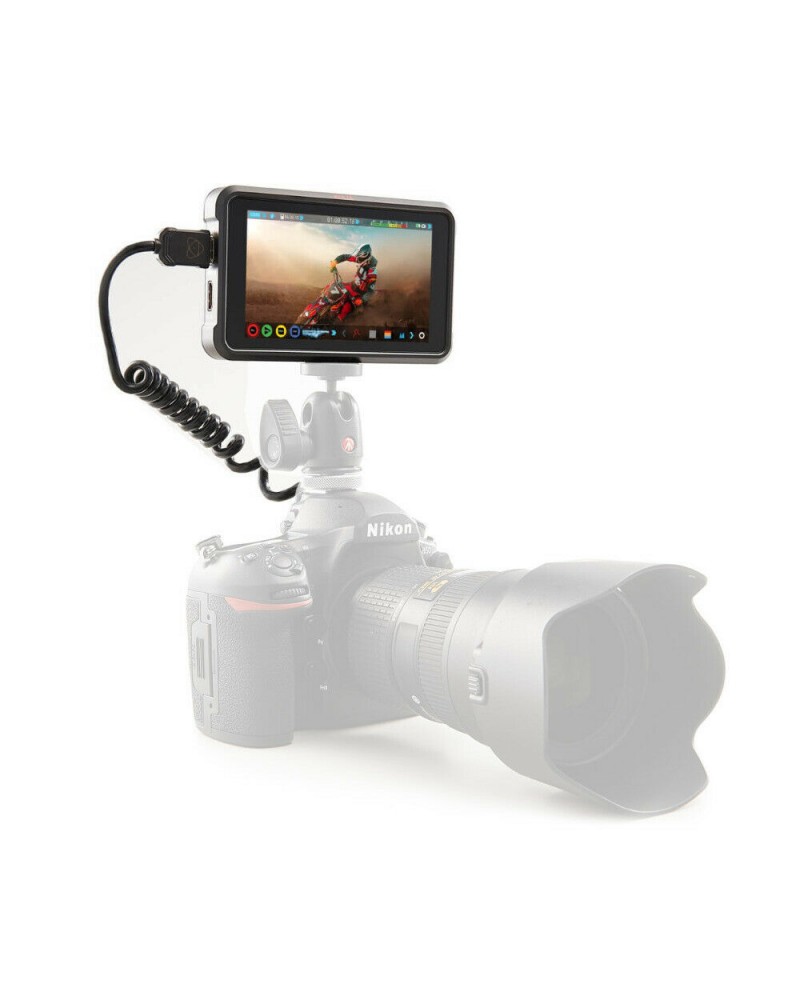

Please Note: Camera and Lens in the pictures are NOT included !
